Ultrasonic Geo Cell Welding Machine

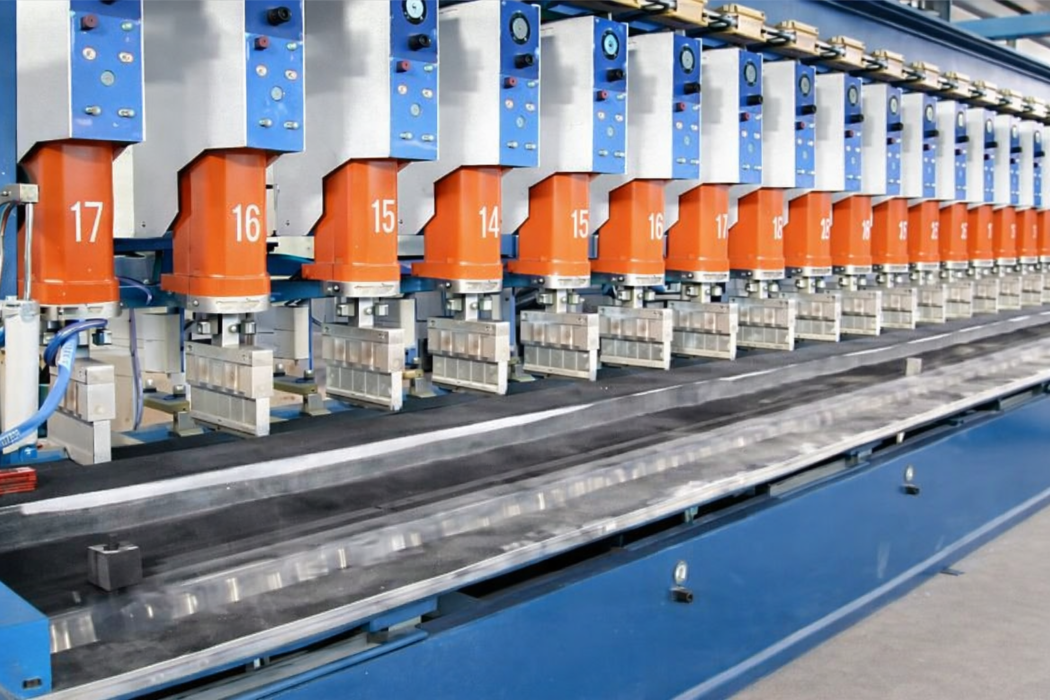

GS-18 Automatic Geocell Ultrasonic welding production line is the most advanced and reliable Geo cell welding machine in the world. This welding production line uses an XL Ultrasonic plastic welding machine and VB programmable controller, with flexible combination design, advanced technology, and reliable operation performance. This production line is mainly composed of multiple sets of ultrasonic plastic welding machines, compared with the same scale production line, it has the advantages of less equipment investment, good welding quality, go output, long service life, easy cooperation, and absolute advantage of saving space and cost.
Features of Ultrasonic Geo Cell Welding Machine:-
- It equipped advanced PLC controller , touch-screen and parameter setting part.
- Using the original Tiwan imported Piezoelectric ceramic transducer , which has stable robust output power.
- LCD touch screen control panel.
- The welding moulds made of the Tiwan imported aluminum alloy , welding signal machine can be horizontal adjustable, more convenient.
- New power amplifier circuit , with bigger robust power and more durable transducer.
- Automatic tracking frequency , multiple parameter settable.
- The welded sheet dimensions can be adjustable in follow range:5cm,10cm,15cm,20cm * 900cm(maximum),0-99sheets adjustable.
- The air pump filter system use a 3.0 CBM refrigerated dryer
- Suitable materials : PP.PE.PVC.
- Main facilities and technical parameters of geo cell welding machine
- ALL main electric facilities and welding materials are using International Well-known brand such as SIEMENS, Schneider, AIRTAC etc to make sure machine’s stable operation and minimal malfunction.
- MODEL A/I-EAXL-9000
- welding post quantity 22units
- Output powder 32KW
- Size of the Equipment (L*W*H)/mm 11000*2000*2305mm
- Welding machine working plate Width 9m
- Weight 9.0T
- Rated In Voltage AC380V & 50HZ
- Welding distance scope 300-800mm
- Geo grid sheet width 50mm-300mm Adjustable
- Production Capacity of 24hours Max8000~12000SQM ( Range according to different Geocell’s height and welding distance )
A/I GC GEO CELL
A/I GC Geo cell is made of high-density polyethylene(HDPE) sheets which are ultrasonically bonded together to make to be an extremely strong configuration.
A/I GC GEO CELL – Economic Type
A/I GC Geo cell is made of high-density polyethylene (HDPE) sheets which are ultrasonically bonded together to make to be an extremely strong configuration.
Frequently Asked Questions (FAQs)
An Ultrasonic Geo Cell Welding Machine is a specialized piece of equipment designed for joining and welding Geocells, which are three-dimensional cellular structures used in civil engineering, environmental, and construction applications. The machine uses ultrasonic technology to create strong and reliable welds between Geocell segments.
This machine generates high-frequency ultrasonic vibrations that are applied to the Geocell segments, softening and bonding the material together. It creates a secure seam that maintains the structural integrity of the Geocell.
Ultrasonic Geo Cell Welding Machines are specifically designed for welding Geocell materials, which are usually made from high-density polyethylene (HDPE) or other thermoplastic materials suitable for civil engineering and environmental applications.
- Fast and efficient welding process
- High bond strength and durability
- Precise and consistent welds
- Reduced installation time and labor costs
- Suitable for various civil engineering and environmental applications
- Fast and efficient welding process
- High bond strength and durability
- Precise and consistent welds
- Reduced installation time and labor costs
- Suitable for various civil engineering and environmental applications

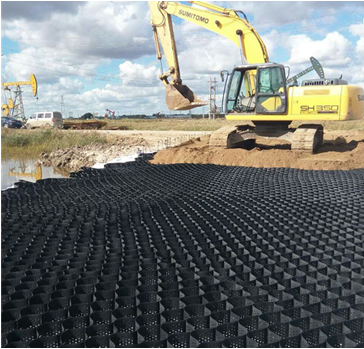

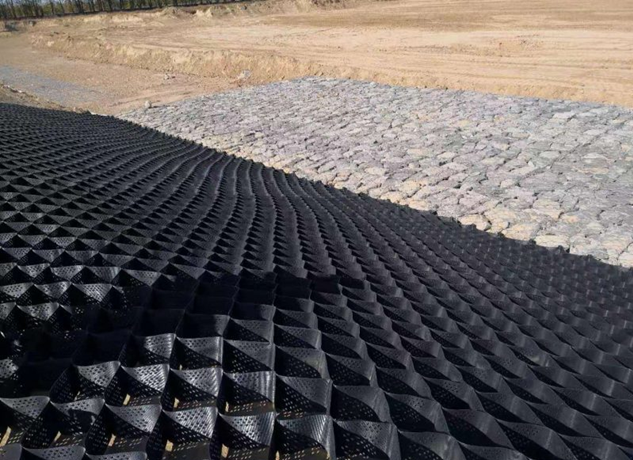

Geocells are used in various applications, including soil stabilization, erosion control, retaining wall construction, and infrastructure support. The Ultrasonic Geo Cell Welding Machine is used to fabricate Geocells for these purposes.
The machine is primarily designed for welding HDPE Geocell materials. Welding other types of materials may require specialized equipment and settings, so consult with the manufacturer for guidance on your specific application.
